The 4 channel power amplifiers are designed for commercial and industrial public address applications. With four separate amplifiers in a single chassis and rated power output at 60W and 240W per channel. this provides a good selection to cover different sized sound systems.

The amplifier is rack mount and T-4S60 is 2U high while T-4S240 is 3U high.

Balanced line inputs are phone jack. 70V, 100V and 4-16ohm speaker outputs for each channel are phoenix type to make installation easy and flexible when matching different speakers. Master volume controls for each control are provided. Complete protection includes over heat, over load, clip & short circuit. Indications for power, signal, peak and protection.

Features

* 4 separate amplifiers in one chassis * Rack mount amplifier in 2U (T-4S60) and 3U(T-4S240) * Rated power 60W or 240W per channel * 70V, 100V and 4-16ohm speaker outputs for each channel - phoenix * Isolated transformer * Balanced phone jack line input for each channel * Protection for over heat, over load, clip & short circuit * Indicators for power, signal, peak, and protect * Efficient radiation and cooling fan ensures safe working temperature

Optional * DC 24V input available on to 4 x 60W model, but not the 240W.

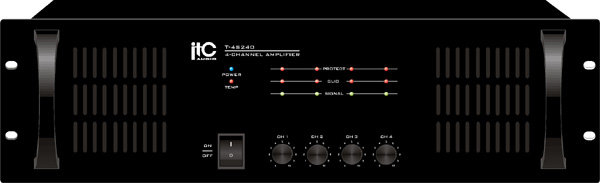

4 x 240 Watt Power Amplifier. 100v and 4ohm output

  • Product Code: T-4S240B
  • U.O.M: ea

  • Price: $1,564.35 (GST Excl.)
