Brief Description
3G Class D, DSP, 18" Active sub woofer, 1250W
Brief

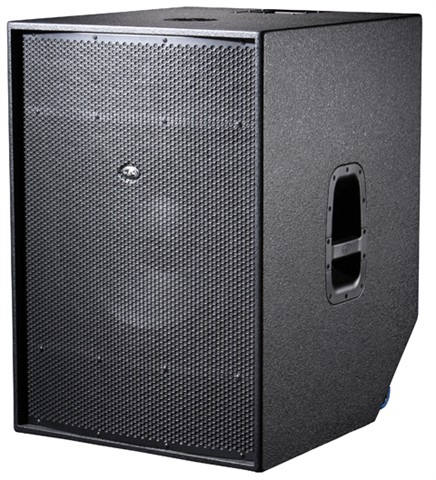

The Avant 118A is a powered rear-loaded horn-bass subwoofer system designed to provide extended bass response for the Avant full-range cabinets.
A 1250 W Class D amplifier drives a D.A.S. 18LX long excursion bass loudspeaker. The 18LX loudspeaker incorporates a 4" voice coil for high power handling and output.
The Avant 118A incorporates a 1250 W Class D amplifier with switch mode power supply (SMPS) and digital signal processing (DSP).The amplifier has a unique EQ switch which allows the user to select a Deep subbass response or a Loud bass response. The system includes two balanced inputs with stereo filtered output connections for satellite systems. The variable crossover ranges from 100 Hz-160 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system.
Avant 118A - DAS Audio Active Subwoofer
Features
-Powered horn bass subwoofer system
-High output LX 18" loudspeaker
-Polarity switch
-Filtered ouput defeat switch
-Variable 100 -160 Hz high-pass filter
-Gain control
Used For
This active subwoofer really does make the earth move. Quantum Mechanics have been applied with extraordinary results and there is not another subwoofer on the market to compete with this 18" Self-powered behemoth. It's got wheels for easy transport too.
Nominal LF Amplifier Power 1250 WRMS (Class D)
Frequency Range (-10 dB)
Loud: 50 Hz – 142 Hz
Deep: 45 Hz -138 Hz
Rated Peak SPL at 1 m 136 dB
Internal Crossover Variable 100-160 Hz
Connectors INPUT: 2 x Female XLR
LOOP THRU: 2 x Male XLR
AC INPUT: PowerCon NAC 3
AC OUTPUT: Powercon NAC 3
AC Requirements 115 V, 50 Hz/60 Hz
230 V, 50 Hz/60 Hz
Current Draw (1/3 power @ 230 V) 2.7 A
Enclosure Material Birch Plywood
Color/Finish Black/Iso-Flex Paint
Dimensions (H x W x D) 84 x 60 x 65.5 cm
33 x 23.6 x 25.8 in
Weight 55 kg (121 lb)
