Price :
$4,103.00/ea
Brief Description
1000 W cont Class D amplifier and a D.A.S. 15SX bass speaker
Brief
– Powered subwoofer system
– High output 15" loudspeaker
– Loop Thru connections
– Filtered output defeat switch
– Variable LPF range 100-138 Hz

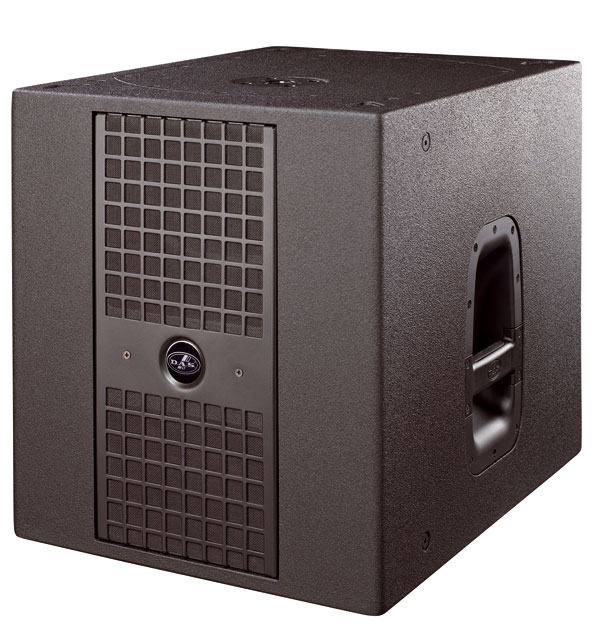

The Artec S15A is a powered subwoofer system designed to provide extended bass response for the Artec full-range cabinets. A 2000 W peak Class D amplifier drives a D.A.S. 15SX bass loudspeaker. The 15SX loudspeaker incorporates a 4" voice coil for high power handling and output. The subwoofer system includes two balanced inputs with stereo filtered output connections for Artec satellite systems. The variable LPF ranges from 100 Hz-138 Hz.
Used For
Technical Data
Nominal LF Amplifier Power 2000 W peak, 1000 W continuous
Frequency Range (-10 dB) dB) 45 Hz -138 Hz
Rated Peak SPL at 1 m 134 dB
Internal Crossover Variable LFP 100-138 Hz
Connectors INPUT: 2 x Female XLR
LOOP THRU: 2 x Male XLR
AC INPUT: powerCON
AC OUTPUT: powerCON
AC Requirements 115 V, 50/60 Hz
230 V 50/60 Hz
Enclosure Material Birch Plywood
Color/Finish Black or White/Paint
Dimensions (H x W x D) 51x46x58 cm
20x10.1x22.8 in
Weight 31 kg (68.3 lbs)
