Brief
- Four Channel Amplifier
– 4 x 2800 W at 4 O
– Class D Topology
– Switch-mode power supply

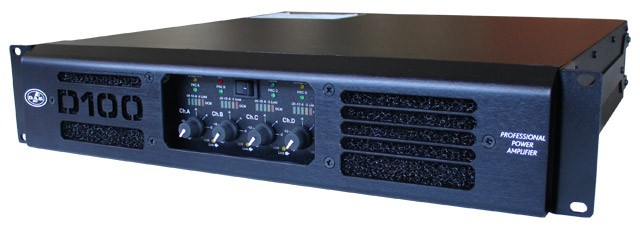

The D-100 is a lightweight, high-power switch mode amplifier designed to the highest standards of reliability and sound quality. Developed for the touring market, the switch mode power supply is capable of delivering high peaks with very low distortion, and is kept within its safe operating area by a sophisticated intelligent limiter.
The D-100 will run cool even in the most challenging conditions, delivering 2,800 W at 4 ohms with all channels driven and an impressive 2 x 7,400 W at 4 ohms in bridge mode. The sonically transparent limiters linked to the output current monitors and power supply, keeps the mains input and output currents within safe operation.
Used For
Technical Data
Stereo Mode (both channels driven)
8 ohms EIA 1 kHz 1% THD 4 x 1400 W
Output Power 4 ohms 4 x 2800 W
Output Power 2 ohms 4 x 3700 W
Output Power Bridged 8 ohms 2 x 5300 W
Output Power Bridged 4 ohms 2 x 7400 W
Frequency Response 0.5 dB (20 Hz-20 kHz)
Distortion (SMPTE-IM) 0.15%
Damping Factor @ 8 ohms >200
Voltage Gain 26/32/36 dB
Output Circuitry Class D
AC Requirements 7 A, 240 VAC (4 ohms)
14 A, 120 VAC (4 ohms)
Dimensions (H x W x D) 8.8 x 48.2 x 42.8 cm
3.5 x 19 x 16.9 in
Weight 12 kg (26.4 lb)
