Price :
$1,949.00
Brief Description
DAS Active speaker with Bluetooth link and DSP built in
Brief

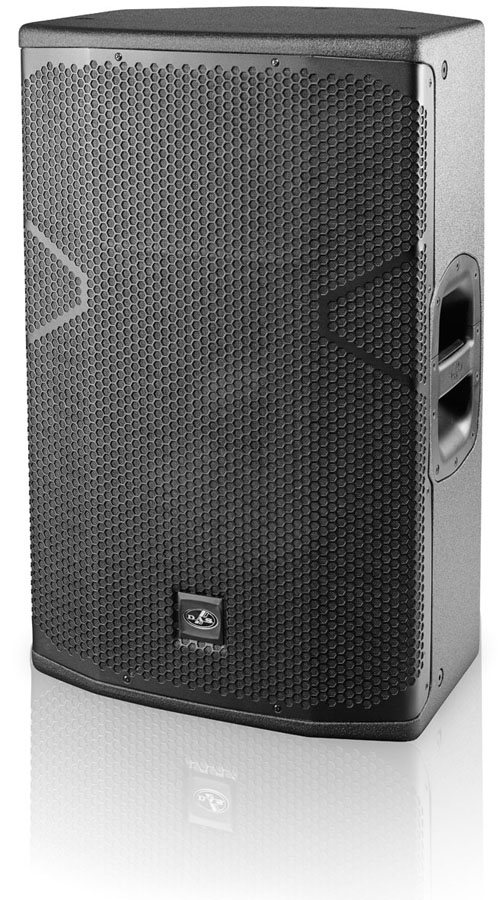

The Vantec 12A is a powered portable speaker system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system. Active speaker - DAS Audio Vantech 12A with bluetooth music streaming built in
– Compact multi-purpose system with monitor position
– Ultra lightweight Class D amplifier with SMPS
– User definable DSP with LCD screen
– Wireless streaming of music
– Pole mount socket with dual angles 0º/10º
– Rigging points
The 1500 Wpeak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

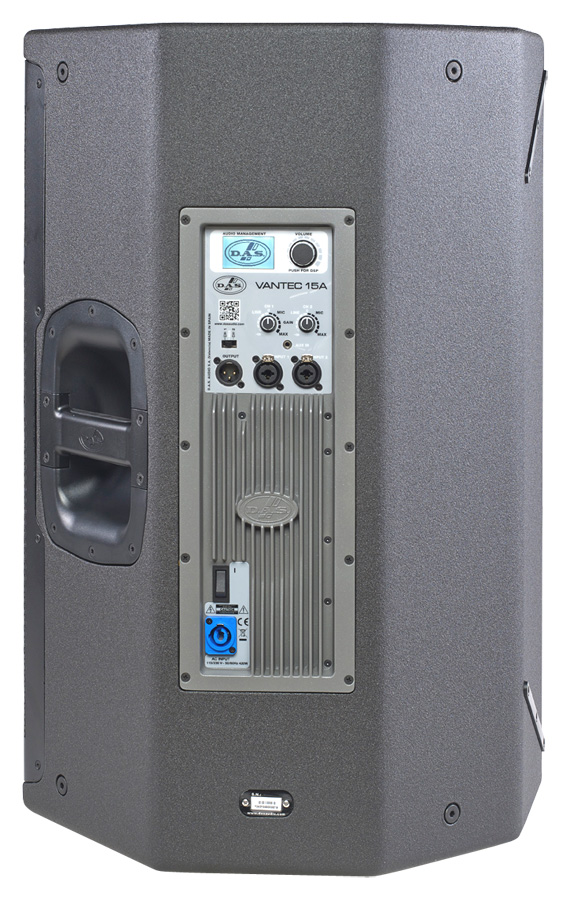

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also allows users to wirelessly stream music from any mobile device.
The 12F4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1? exit offering excellent performance.
Used For
Portable active speaker with bluetooth receiver and digital control.
Amplifier Power 1500 Wpeak
Clase D, Biamplified
Frequency Range (-10 dB) 60 Hz - 20 kHz
Rated Peak SPL at 1 m 135 dB
Dispersion 90º x 50º
Enclosure Material Birch Plywood
Color/Finish Black ISO-flex Paint
Connectors INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: powerCON
AC Requirements 115 V, 50 Hz/60 Hz
230 V, 50 Hz/60 Hz
Dimensions (H x W x D) 61 x 38 x 37.5 cm
24 x 15 x 14.8 in
Weight 21 kg (46.2 lb)
