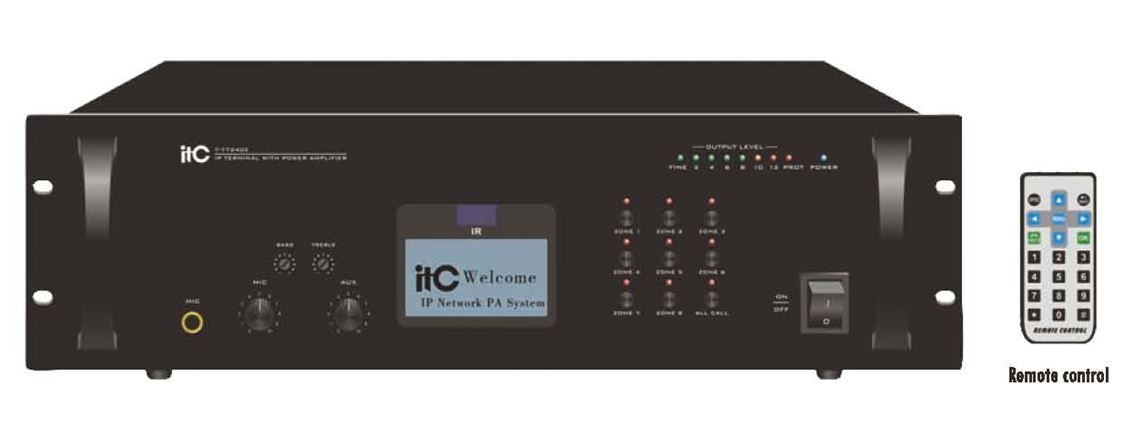

240 watt power amplifier with 8 speaker zones for 7700 series IP Audio systems.
Standard 19 inch rack design, black aluminum panel and high quality finish and appearance with and industrial grade 3.4-inch LCD for status display and monitoring.
Embedded DSP audio processing technology, high-speed industrial-grade SCM system chip with under 1s startup, built-in network IP audio decoding, and supports TCP / IP, UDP, IGMP (multicast), for 16-bit CD audio quality audio signal.
High-fidelity analog amplifier, with 8 independent zones and available in 240W / 350W / 500W options with 100V output.

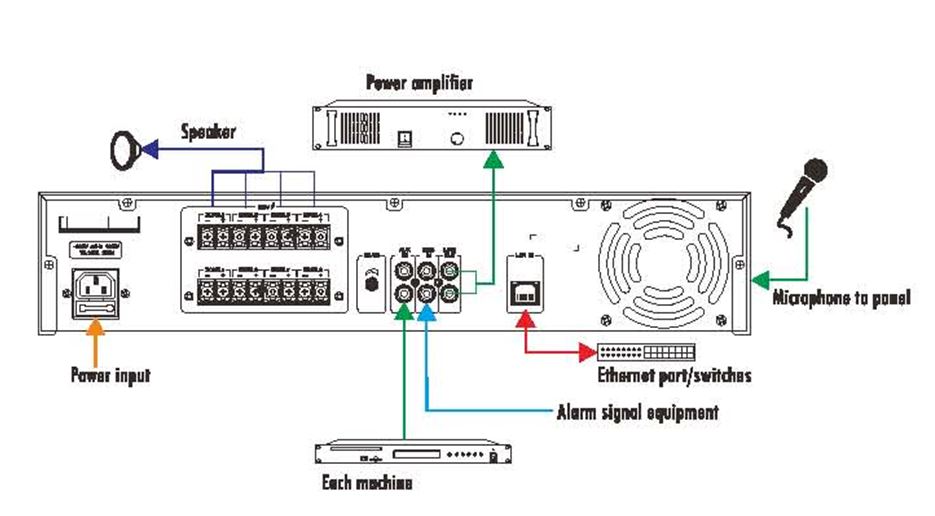

1 line (AUX) and 1 microphone (MIC) input, with independent volume control and treble/bass control, still supports local inputs when off-line.
1 channel EMC input interface (emergency audio signal is connected directly, and has highest priority).
2-channel audio output, for connection with additional amplifiers (standard RCA).
Built-in intelligent power management; when there is no BGM or paging power is automatically cut until audio returns.
Three (3) built-in priority settings:
1) EMC has the highest priority.
2) The network alarm signal has higher priority than MIC, AUX and network background music signal.
3) MIC has higher priority than AUX and network background music signals.
4) AUX and network background music has the same level priority.
Preset VOX mute level function, audio level indicator, protection indicator, standby indicator.
Standby power consumption is less than 3W.
8 zone speaker controller with 240 watt amplifier built in for 7700 series IP Audio systems
Product Model | T-77350Z | T-77500Z | T-77240Z | |
Supported Protocols | TCP/IP, UDP, IGMP(Multicast) | |||
Transmission Rate | 100Mbps | |||
Audio Format | MP3 | |||
Audio Mode | 16 bit CD quality | |||
Sampling Rate | 8K~48KHz | |||
EMC Input Sensitivity | 775mV (Unbalanced) | |||
AUX Input Sensitivity | 350mV (Unbalanced) | |||
MIC Input Sensitivity | 5mV (Unbalanced) | |||
AUX Output Amplitude | 1000mV 2 RCA output interface | |||
AUX Output Impedance | 470Ω | |||
Treble Adjustment Range | ± 10dB | |||
Bass Adjustment Range | ± 10dB | |||
Rated Power | 120W | 350W | 500W | 240W |
Input Power | ~220-240V 50/60Hz | |||
Power Consumption | 540W | 750W | 370W | |
Standby Power Consumption | ||||
Frequency Response | 80Hz~16KHz +1/-3dB | |||
Harmonic Distortion | ≤1% | |||
SNR | >65dB | |||
Output Method | 100V constant voltage output | |||
Size | 484 x 359 x 132mm | 484 x 359 x 132mm | 484 x 359 x 132mm | |
Weight | 15.5Kg | 18Kg | 13.7Kg | |
Network Interface | Standard RJ45 input | |||
Circuit Protection | DC output, overload, over temperature, | |||
short circuit protection | ||||
Working Temperature | 5?~40? | |||
Working Environment Humidity | 20% ~80% relative humidity, no condensation |
IP Network Audio Amplifier, 8 zone, 240 watt, rack mnt
- Product Code: T-ED77240Z
- U.O.M: ea
