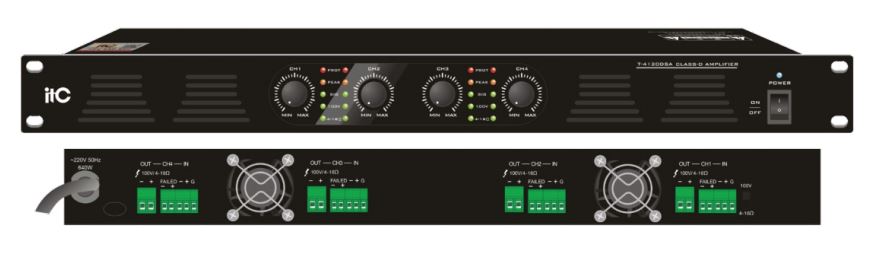

Multichannel audio power amplifier. 4 x 60w commercial audio amplifier for multi zone use in public address, paging, music and background music systems in clubs, venues, shopping centers etc.
Excellent quality, reliable, high-efficiency Class-D amplifiers and switchmode power supply.
4 channel Euro terminal balanced inputs and 4-channel Euro terminal outputs, switchable between 4-8 ohm / 100v line.
1U standard rack design with Short circuit, overload and overheat protection giving you peace of mind and years of reliable performance, but just in case, fault output function for remote status monitoring.
3 year factory warranty.
| Technical Parameters | |
| Model | T-4060DSA |
| Rated Power | 4×60W |
| Rated Output | 100V/4-16Ω |
| Input sensitivity (impedance) | ±385mV/20KΩ, Balanced input |
| Overload source electromotive force | >11dB |
| Frequency response | 80Hz~16KHz (+1, -3dB) |
| SNR | ≥85dB |
| THD | ≤0.1% at 1KHz, 1/3 rated power |
| Control | Remote power control and fault indication |
| Indicator Light | Signal, peak, protection, power supply |
| Protection | High temperature, overload, short circuit |
| Cooling | Forced fan cooling |
| Power Supply | AC 240V/50Hz |
| Power Consumption | 380W |
| Dimension | 484×300×44mm |
| Weight | 5.0Kg |
4 Ch x 60 Watt Class D Amplifier, 100v/4ohm, Balanced
- Product Code: T-4060DSA
- U.O.M: ea
-
Price: $1,599.00 (GST Excl.)
