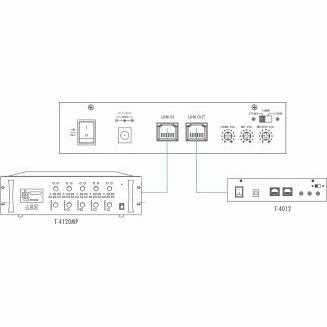

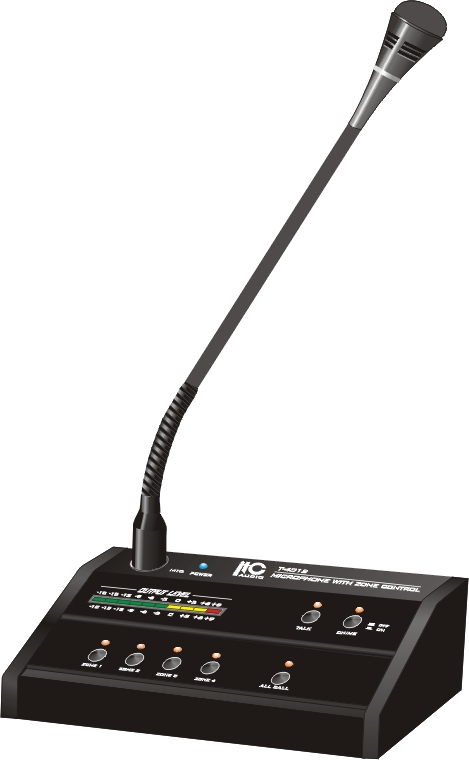

The T-4012 is a remote paging microphone with 4 zone capacity for T-4060MP and T-4120MP amplifiers only. They are linked by RJ45 port through CAT5 cable, max 6 microphones can be cascaded together for one amplifier.
The microphone has built-in a two & four tone chime selector, it is powered by the amplifier at 24V DC. Maximum communication distance is 1km. There are four zone selector, all call, talk and chime bush buttons, the 10 segment level meter displays the output level. Built-in microphone, chime and master volume control.
Features
- 4 zone remote paging microphone
- With zone, group zone and all zone paging capacity
- One amplifier capacity is 6 microphones
- The microphone was connected to the amplifier through CAT 5 cable
- The microphone is DC24V powered from the amplifier at max 1kms distance
- Built-in pre announcement chime of 2 & 4 tone selector
- With microphone, chime & master volume control
- With 10 segment level meter
Paging microphone for the T-4120 Matrix Amplifier
|
Model |
T-4012 |
|
Mic Type |
Condenser microphone |
|
Communication Mode |
Level control |
|
Capacity |
4 ZONE |
|
Output Level |
1V/600? |
|
Frequency Response |
80-18KHz (+1/-3dB ) |
|
THD |
≤1% |
|
Power Consumption |
10W |
|
Communication Distance |
1KM |
|
Power Supply |
24V DC |
|
Dimension |
197x115x43.5mm |
|
Weight |
960g (Without Microphone) |
4 Zone Remote Paging Microphone
- Product Code: T-4012
- U.O.M: ea
-
Price: $431.81 (GST Excl.)
