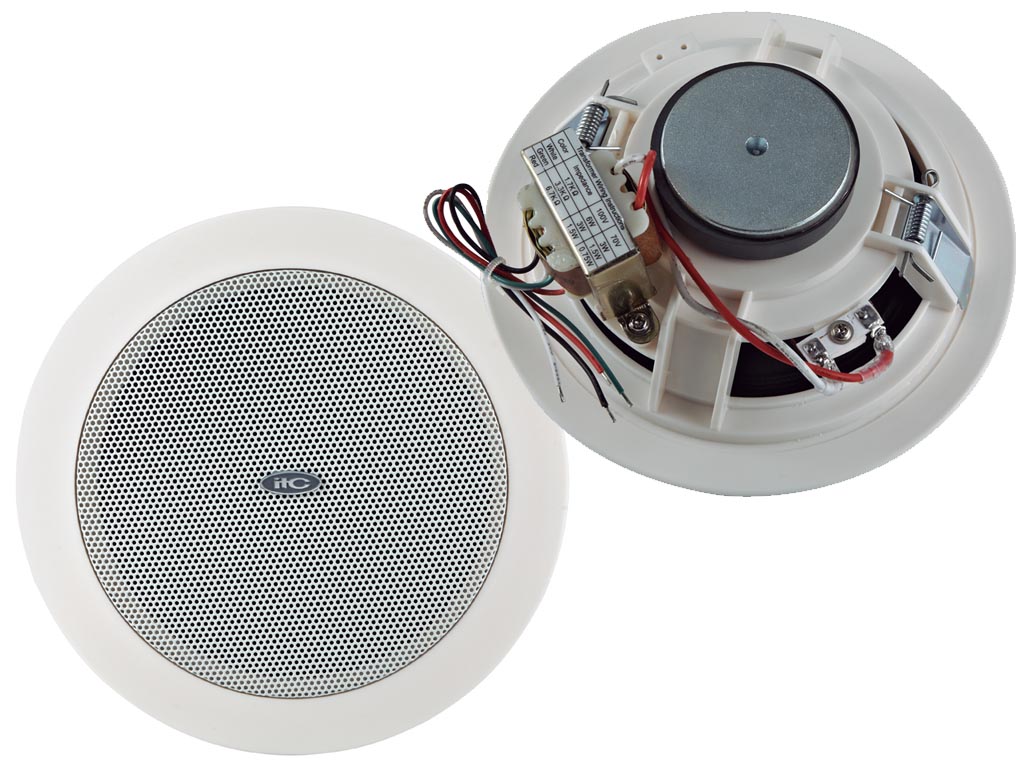

The T-106U is a ceiling speaker with incorporated 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 6” speaker driver is designed for wide frequency response 80-16kHz, the multiple power taps 3W, 6W & 9W are helpful for different applications, various room size and ambient noise conditions. The metal grille and ABS baffle are painted in attractive RAL9016 white color.

A spring clamp makes for easy and secure installation. It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where public address and paging is needed. It is most efficient for voice and announcements, and is ok for music too.

Good quality general purpose ceiling speaker for background music systems and paging applications.

Specification

Product Model T-106U
Dimensions 200x 86 mm
Cutout Size 170mm
Power Taps @100V 3W, 6W, 9W
Power Taps @70V 1.5W, 3W, 4.5W
SPL(1W/1M) 91dB
Impedance Black: Com Red:3.3KΩ Green:1.7KΩ White:1.1KΩ
Max. SPL (Rated W/1M) 101dB
Frequency Response (-10dB) 80- 18 KHz
Finish Baffle: ABS, White Grille: Steel, White
Speaker Driver 6
Weight 0.9Kg
Mounting Spring-clip

6" 9w Ceiling speaker, 3-6-9W /100v. Cutout 170mm

  • Product Code: T-106U
  • U.O.M: ea
  • Was: $28.00 Now: $23.20 (GST Excl.)
