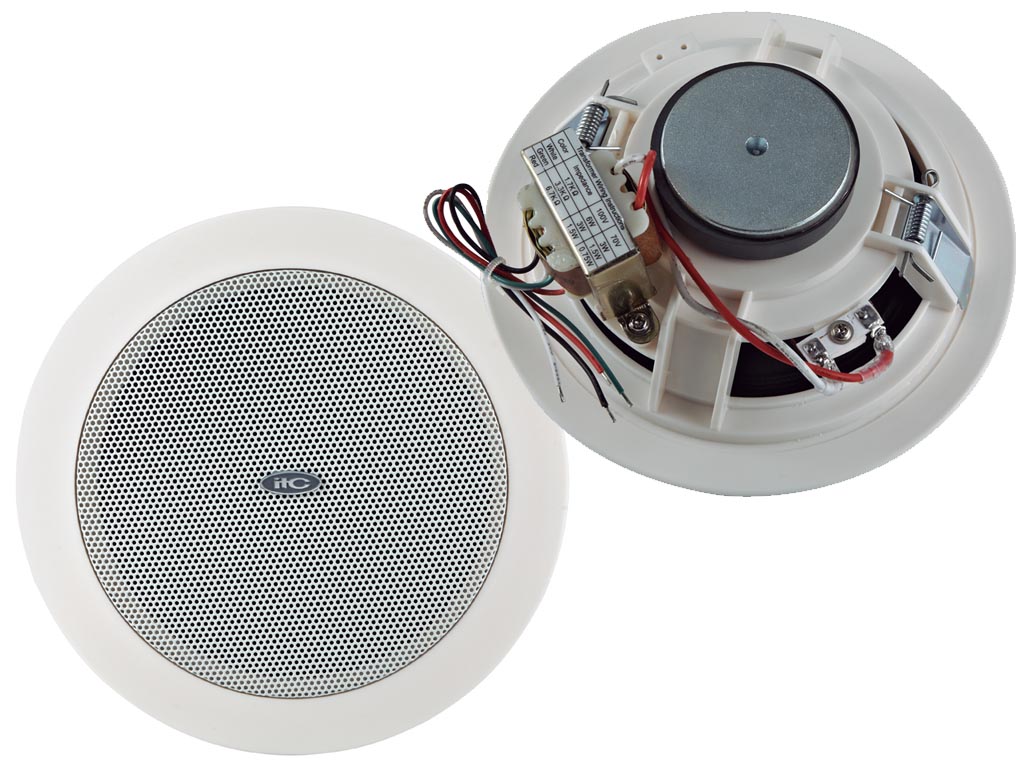

T-106U 6" Ceiling Speaker – Clear Paging & Background Audio for Commercial Spaces

The T-106U is a compact and cost-effective 6" ceiling speaker engineered for clear voice paging and light background music in commercial and industrial environments. Designed with an integrated 70V/100V line transformer, it enables efficient long-distance signal distribution with minimal loss and supports parallel speaker installation for scalable sound systems.

With a frequency response of 80Hz–16kHz, the T-106U ensures excellent speech intelligibility and consistent audio coverage. It includes multiple power taps (3W, 6W, 9W @ 100V) to accommodate different room sizes and ambient noise levels.

The durable metal grille and ABS baffle offer a clean, professional look in RAL9016 white, while the spring-clip installation system makes mounting quick and tool-free—perfect for time-sensitive installations in multi-room environments.


Key Features:

  • 6" Commercial Ceiling Speaker – Optimized for clear voice announcements and ambient music

  • Frequency Response: 80Hz – 16kHz – Balanced clarity for paging and light background sound

  • 100V Line Input – Supports long cable runs and multi-speaker setups

  • Selectable Power Taps (3W, 6W, 9W) – Fine-tune output based on room size and application

  • RAL9016 White Finish – Clean, professional aesthetic for seamless ceiling integration

  • Quick Spring-Clamp Installation – Secure, tool-free mounting for fast deployment


Ideal Applications:

  • Hotels & Conference Rooms – Reliable audio for announcements and soft background music

  • Corporate Offices – Suitable for open-plan areas, reception zones, and meeting rooms

  • Schools & Universities – Effective for paging, alerts, and hallway audio

  • Retail Stores & Factories – Durable choice for ambient audio and general announcements

Note: For higher-fidelity music playback, explore our T-208A model.

Good quality general purpose ceiling speaker for background music systems and paging applications.

Specification

Product Model T-106U
Dimensions 200x 86 mm
Cutout Size 170mm
Power Taps @100V 3W, 6W, 9W
Power Taps @70V 1.5W, 3W, 4.5W
SPL(1W/1M) 91dB
Impedance Black: Com Red:3.3KΩ Green:1.7KΩ White:1.1KΩ
Max. SPL (Rated W/1M) 101dB
Frequency Response (-10dB) 80- 18 KHz
Finish Baffle: ABS, White Grille: Steel, White
Speaker Driver 6
Weight 0.9Kg
Mounting Spring-clip

6" 9w Ceiling speaker, 3-6-9W /100v. Cutout 170mm

  • Product Code: T-106U
  • U.O.M: ea
  • Price: $29.00 (GST Excl.)
