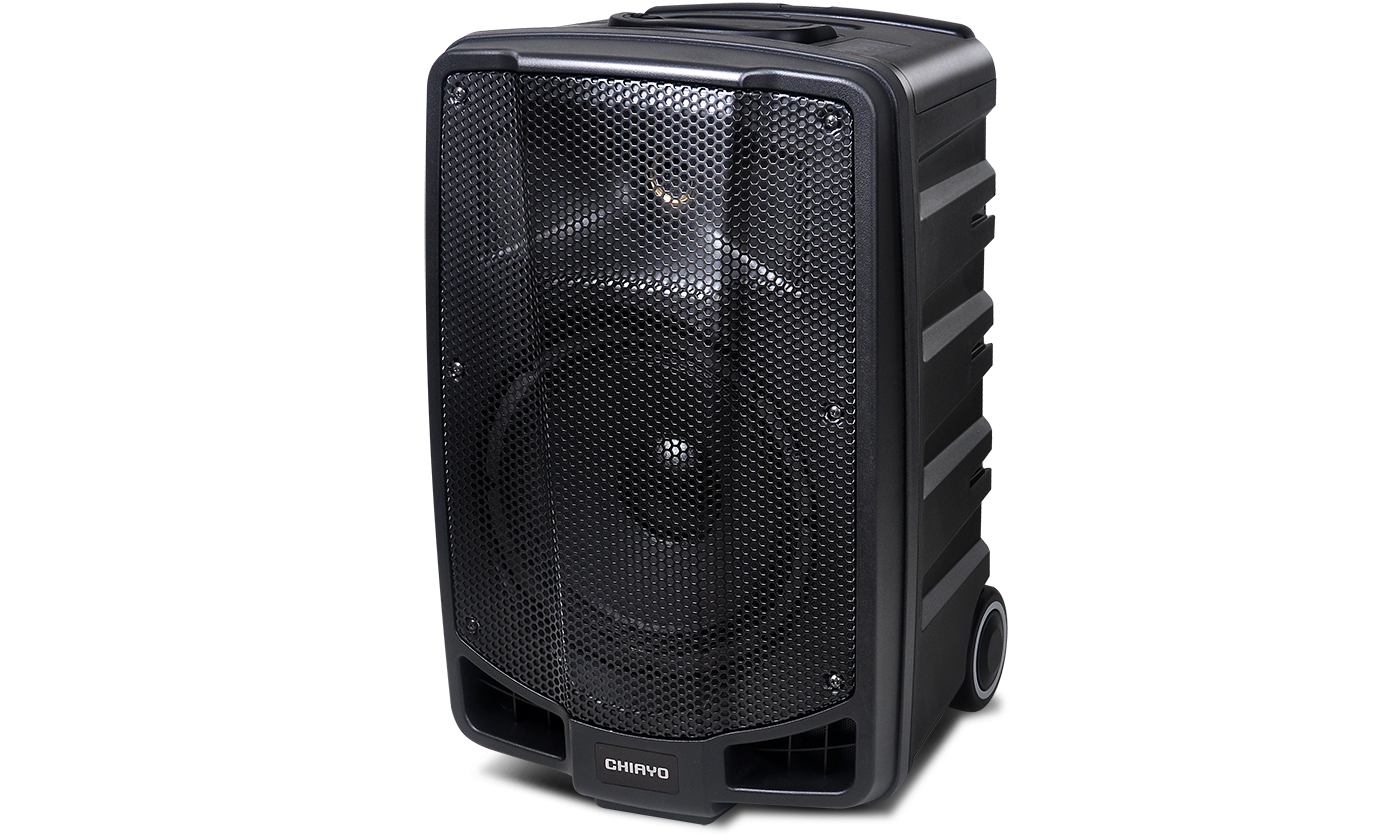

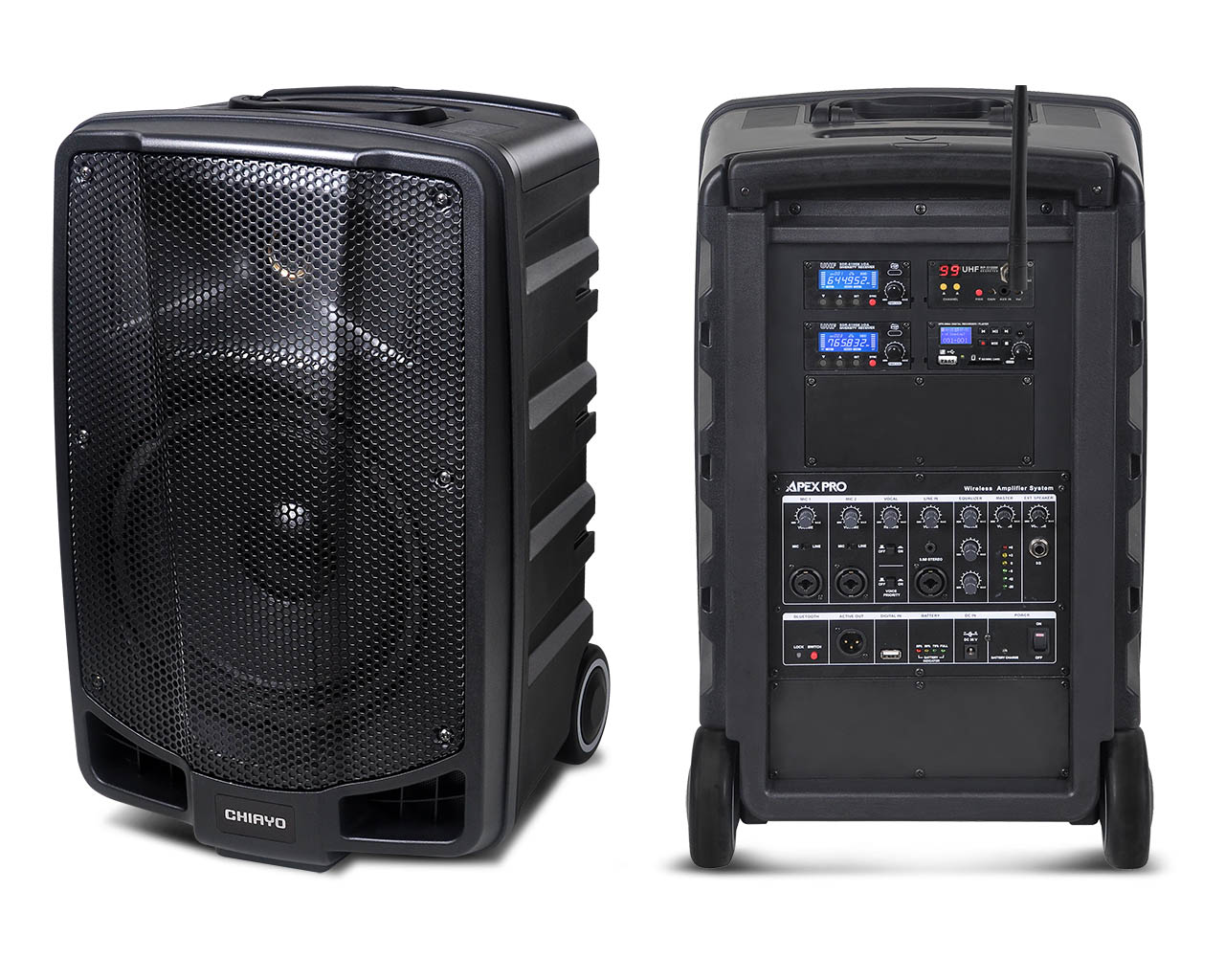

Apex Pro Portable PA with Receiver Batteries & Dustcover

Apex Pro 250 watt portable PA with 10 inch 2-way speaker with Bluetooth built in and 1 x SDR8100M-6 diversity UHF 100 channel receiver module. Lithium batteries. Includes DC55 dustcoverBand 6 650 - 675 MHz. Transmitter not included


APEX PRO

Portable Wireless Mixer PA System

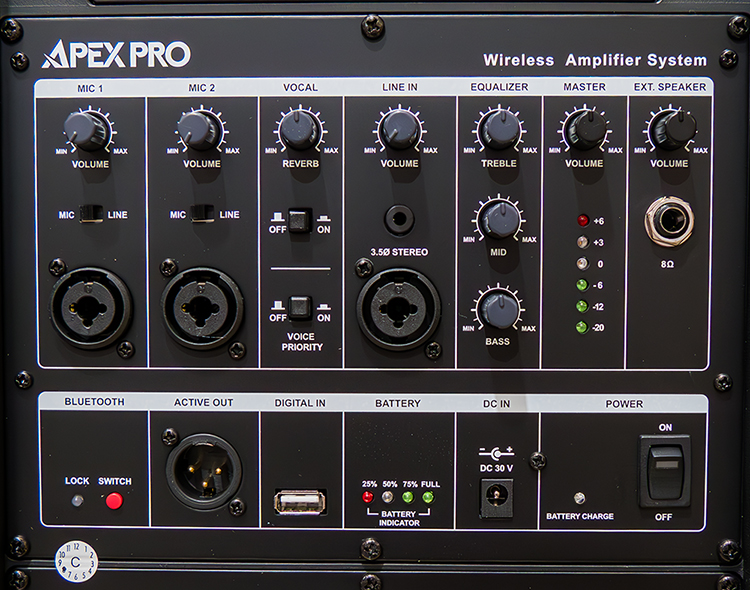

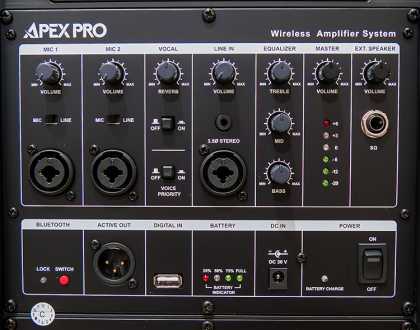

Features

• Dual 250W Class-D power amplifiers built in.
• Built in 2-way 240 watt speaker system (10” + 1” HF).
• 240 watt active output for external 4~8Ω speaker.
• MIC 1 and 2 are XLR/6.3mm combo jack connectors for microphone and line inputs with individual volume control and a MIC/LINE level switch.
• LINE IN (XLR/6.3mm combo & 3.5mm jacks) with volume control.
• Up to 4 diversity receiver modules with 100 frequencies.(optional)
• Scan and Sync button for quick and simple mic channel set-up.
• Built in Bluetooth receiver for music streaming.
• DIGITAL IN (USB 2.0) allows playing audio files directly from computer via USB cable.
• ACTIVE OUT (XLR jack) for multi-unit audio linking.
• SPEAKER OUT (6.3mm jack) for an external 8Ω passive speaker with volume control.
• REVERB with bypass, and volume control for wired and wireless microphones (switchable).
• VOICE PRIORITY function automatically ducks music during speech (switchable).
• 3-band equalizer (BASS / MIDDLE / TREBLE) for all audio inputs.
• Digital limiter prevents output distortion, with 6-step LED audio meter indicator.
• Smart charging circuit with 4-step LED battery indicators and charging LED.
• Storage compartment for 4 transmitters (handheld x 4 pcs or handheld x 2 pcs + beltpack x 2pcs) and a switching power supply.
• User friendly battery compartment design for simple battery replacement.
• Integrated retractable handle and BIG wheels for easy portability.
• Tripod stand mountable with ST-50.
• Up to 12 hours operating time per charge with lithium battery and 6 hours with Lead-Acid battery.
• 2 power modes: Internal Rechargeable battery & DC jack.

Specifications

• Model:    APEX PRO
• Onboard Class D amplifier:    Dual 250W Class-D power amplifiers
• Maximum Output Power:
  • Built in 2-way 240 watt speaker system
  • 240 watt active output for external 4~8ohm speaker
• Speaker system:     10" LF, 1" HF and crossover
• Sensitivity:    Maximum 110 dB
• T.H.D.:     < 0.5%
• Freq. response:     50Hz-20KHz±3dB
• Audio Inputs:
  • MIC/LINE in x 2 (6.3mm/XLR COMBO)
  • LINE IN x 2 (6.3mm/XLR COMBO, 3.5mm)
  • Digital in (USB 2.0)
  • Up to 4 wireless microphones
• Audio Output:    ACTIVE OUT (XLR)
• External speaker:    8Ω (6.3mm), with volume control
• Controls:    EQUALIZER,REVERB & VOICE PRIORITY on wired/wireless mics
• Audio meter indicator:    6 LED indicators
• Power supply:     Input: 100-240V AC / 30-32V DC, 4A
• Battery type:     Lead-Acid
  • Battery spec:    12V, 5A
  • Battery Q'ty:    2
  • Battery Indicator:    4 LED indicators
  • Operating time:    5-6 hours in music, >10 hours in speech
  • Charging time:    about 6 hours
  • Storage:
    • Transmitter: handheld x 4 pcs or handheld x 2 pcs + beltpack x 2pcs
    • Switching power supply: 1pc
  • Dimension (mm):     550(H) x 360(W) x 340(D)
  • Weight (kg):     18.7
• Battery type:      Lithium
  • Battery spec:       25.9V, 7.8A
  • Battery Q'ty:     1
  • Battery Indicator:    4 LED indicators
  • Operating time :       8-10hours in music, >12 hours in speech
  • Charging time:       about 8hours
  • Storage
    • Transmitter: handheld x 4 pcs or handheld x 2 pcs + beltpack x 2pcs
    • Switching power supply: 1pc
  • Dimension (mm):     550(H) x 360(W) x 340(D)
  • Weight (kg):     15.7

SDR-8100M IrDA

UHF 2-Way Sync Diversity Receiver Module

Features

• World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
• 100 factory preset user-selectable UHF channels.
• Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
• Clear and intuitive LCD display for easy operation and quick set-up.
• Balanced and unbalanced audio output.
• 20-pin golden finger for easy installation.

Specifications

• Model:    SDR-8100M IrDA
• Frequency Range:    UHF 500 - 960 MHz
• Bandwidth:    25 MHz
• Receiving Mode:    Diversity
• Peak Deviation:    ± 40 KHz
• Channel Sync:    2-way (RX ⇔ TX)
• Sensitivity:    S/N > 80 dBm at 10 dBμV
• S/N Ratio:    > 85 dB(A)
• T.H.D.:   < 0.5% @ 1 KHz
• Frequency Response:    50 Hz - 18 KHz
• Preset Frequencies:   100
• Oscillation Mode:    PLL synthesized, frequency stability ± 0.005% (-10~+60?)
• Squelch:    Pilotone & Noise-cancelling dual-squelch circuit
• Audio Output Adjustment:    Gain control circuit for adjustment of output volume
• Power Supply:    12V DC
• Dimensions (W × H × D):    74*36*138
• Weight:   102
