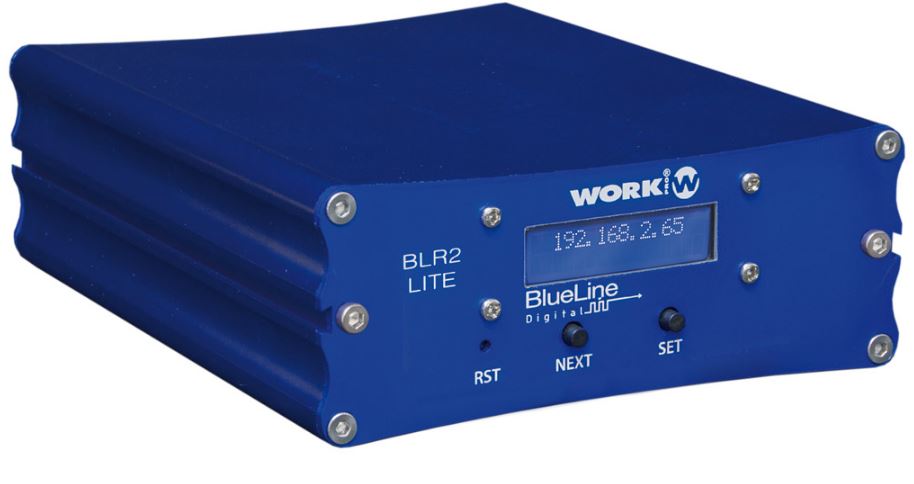

Audio Over IP Streaming Receiver  -BLS2 Lite MkII

The BLR2 Lite is a high-quality audio over IP (AoIP) receiver designed for stereo audio streaming in commercial and professional environments. It utilizes RTP multicast streaming in PCM or MP3 formats, allowing you to easily transmit unbalanced audio (9 selectable channels) over a LAN or wireless network bridge.

Perfect for transmitting audio point-to-point across a venue or local area network (LAN), the BLR2 Lite is also suitable for wide-area PA system audio links when combined with Wifi Bridge distribution. This plug-and-play device requires minimal setup and seamlessly integrates with Blueline receivers for converting the audio stream back into analogue audio.

Power options include PoE (Power over Ethernet) or an external 12/24V DC power supply. With Euroblock connectors and configurable settings via Workcad 3 software, the BLR2 Lite offers flexibility for various audio network configurations.

Key Features

Stereo Audio Streaming – Receive one stereo channel over IP (9 channels available)
RTP Multicast Streaming – Supports PCM (1.5 Mbps) or MP3 (220 Kbps) formats
Unbalanced Audio Input – Nine selectable channels for flexible audio routing
Power Options – PoE or 12/24V DC power supply
Easy Setup – Plug-and-play with minimal configuration required
Network Integration – Suitable for LAN, wireless network bridges
Configurable via Workcad 3 Software – Customizable audio settings and routing

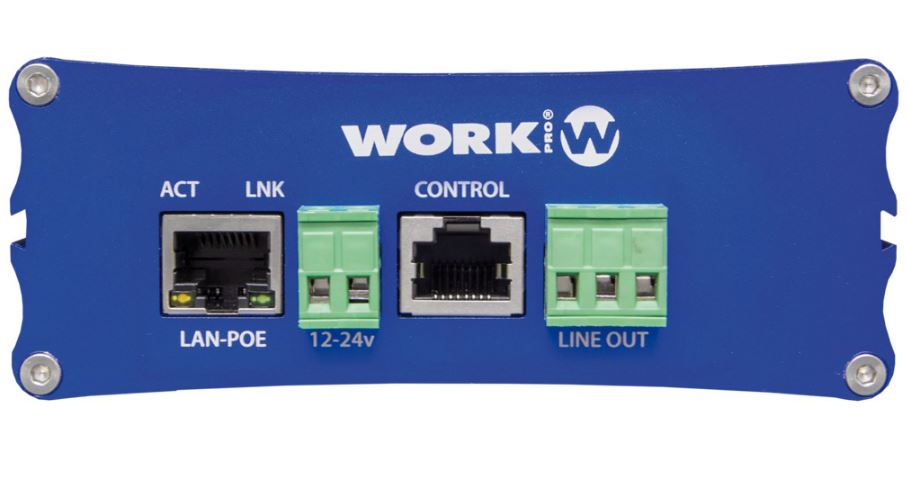

Euroblock Connectors – Secure, reliable audio input/output

Applications

Audio Distribution for PA Systems
Venue Audio Networking
Large-Scale Audio Installations
Point-to-Point Audio Streaming
Wireless Audio Receiver

Product Dimensions

13 x 11 x 4 cm

Download the manual here
