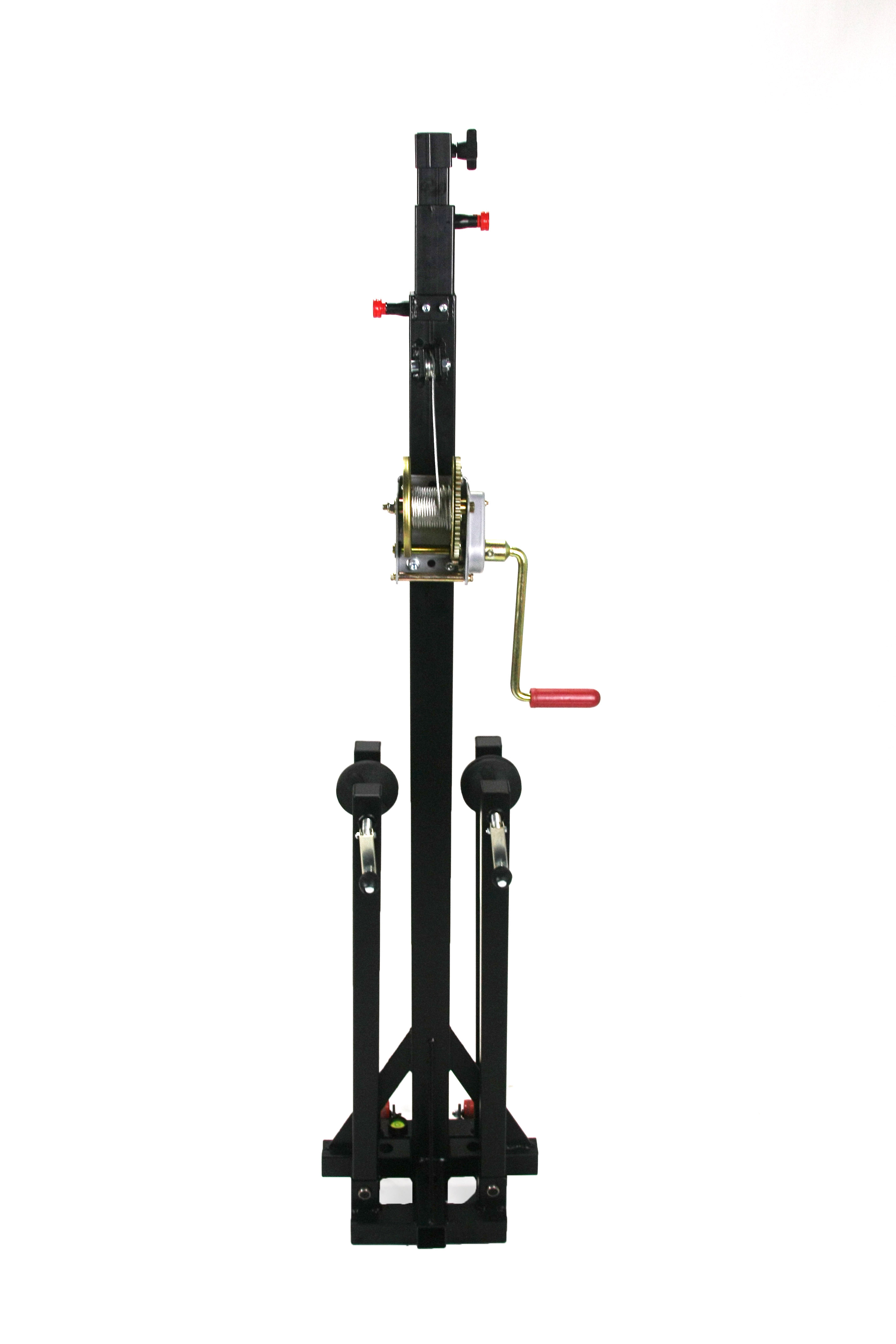

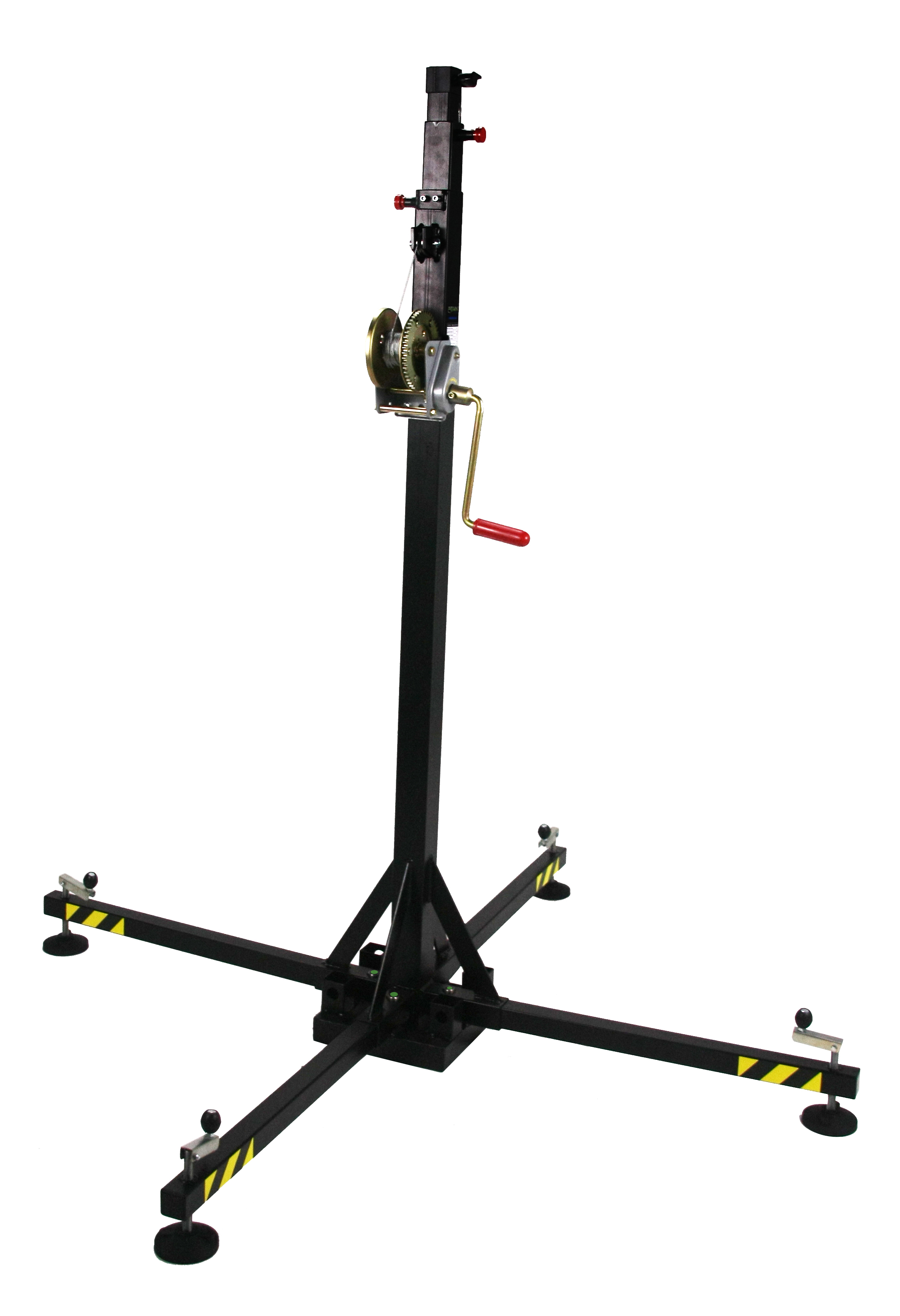

MEGARA 100 Lifting tower with traditional leg system. Telescopic lifting towers with "traditional" leg system, for raising lighting, sound systems and trusses. Max. height: 4m. Max. load: 100kg

Fenix Megara 100 lifting tower for smaller speakers, lighting and truss.

• Automatic leg locking system allows the outriggers to anchor easily in the correct place, doing away with old and uncomfortable safety pin rings.
• Level at the base helps you stabilise the tower easily and accurately.
• Safety pins stop the load from falling or slipping down. You can select different tower heights safely by raising the bars equally, this distributes the load evenly from the main bar to the last bar. Ultimately this prolongs the towers lifetime and increases its stability

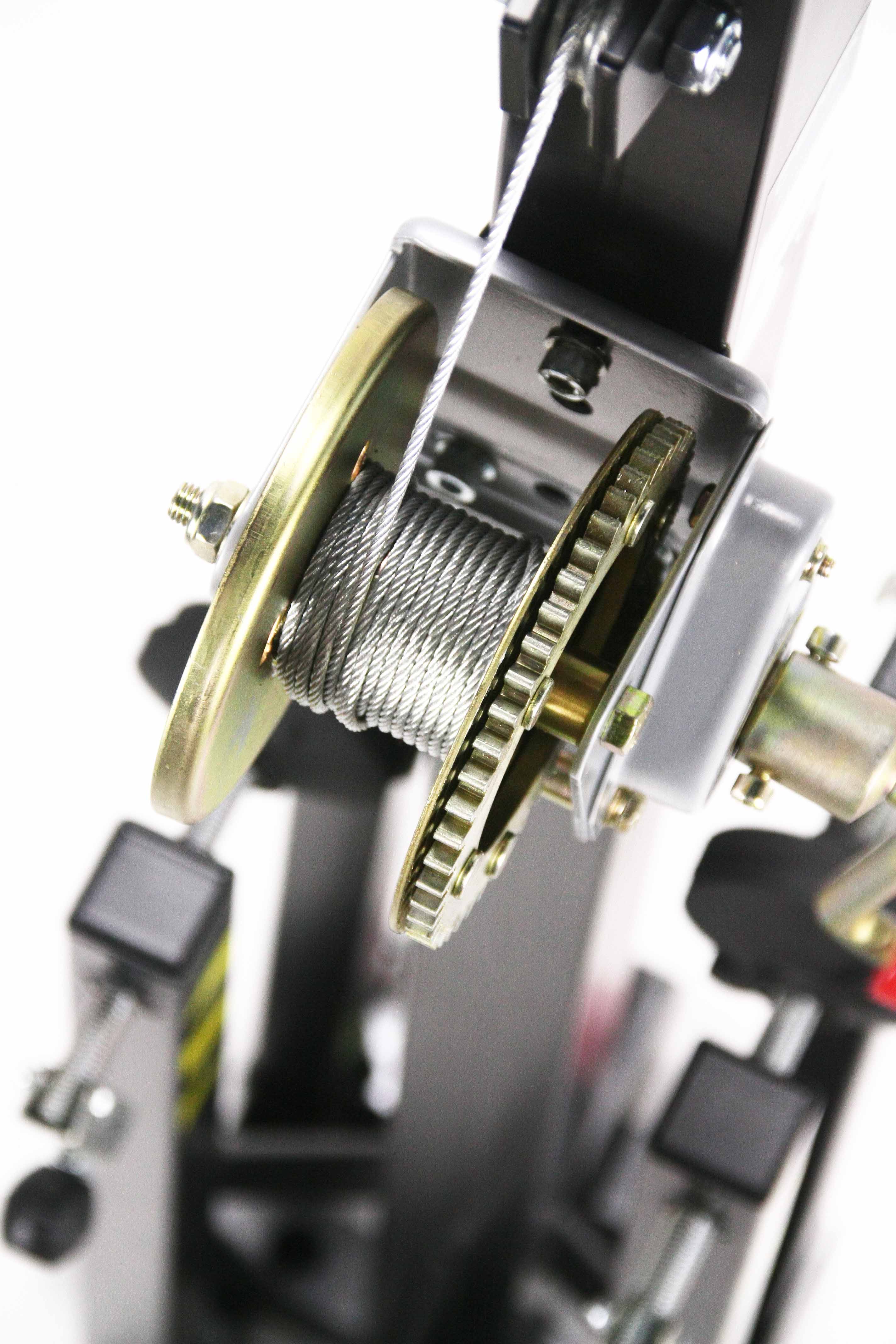

• Winches are manufactured by industry leading companies. They are resistant and durable as well as oversized for additional safety and better cable pull.

Features:
- Easy handling and lightweight.
- Made of steel.
- Available colour: Black.
- Many accessories available.

Specifications:
Maximum height: 4m
Height folded: 1.66m
Maximum load: 100kg
Minimum load: 25kg
Material: Galvanized steel under EN 10305-5.
Workspace: 1.15 x 1.15m
Closed base area: 0.36 x 0.36m
Weight: 33kg
Winch: 450kg maximum load with automatic load retention brake.
Cable: Galvanized steel under EN 12385-4.
Maximum cable load: 956kg
Cable twisting resistance : 1.770 N/mm²
Cable diameter: 4mm
Cable composition: 7x19+0
Security system: External trigger in sections
Leg attachment: Safety pins
Bubble level: to vertically adjust the tower.
