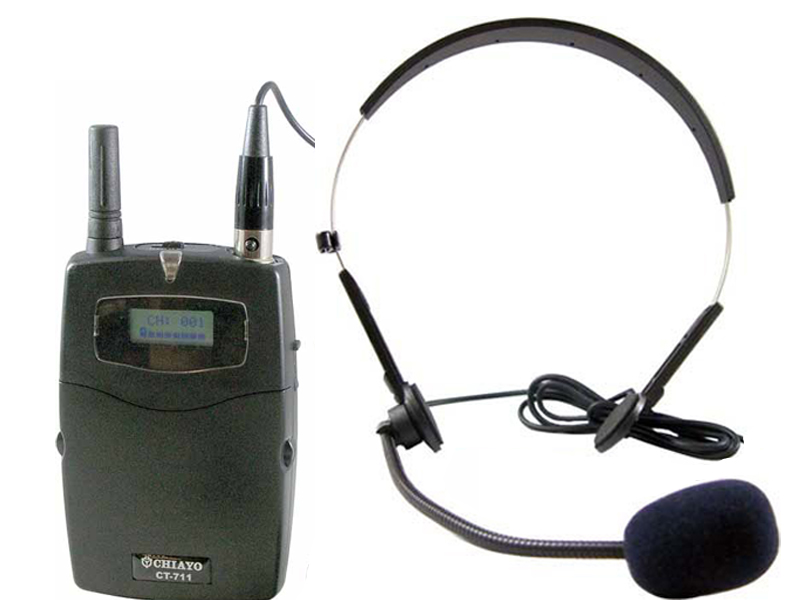

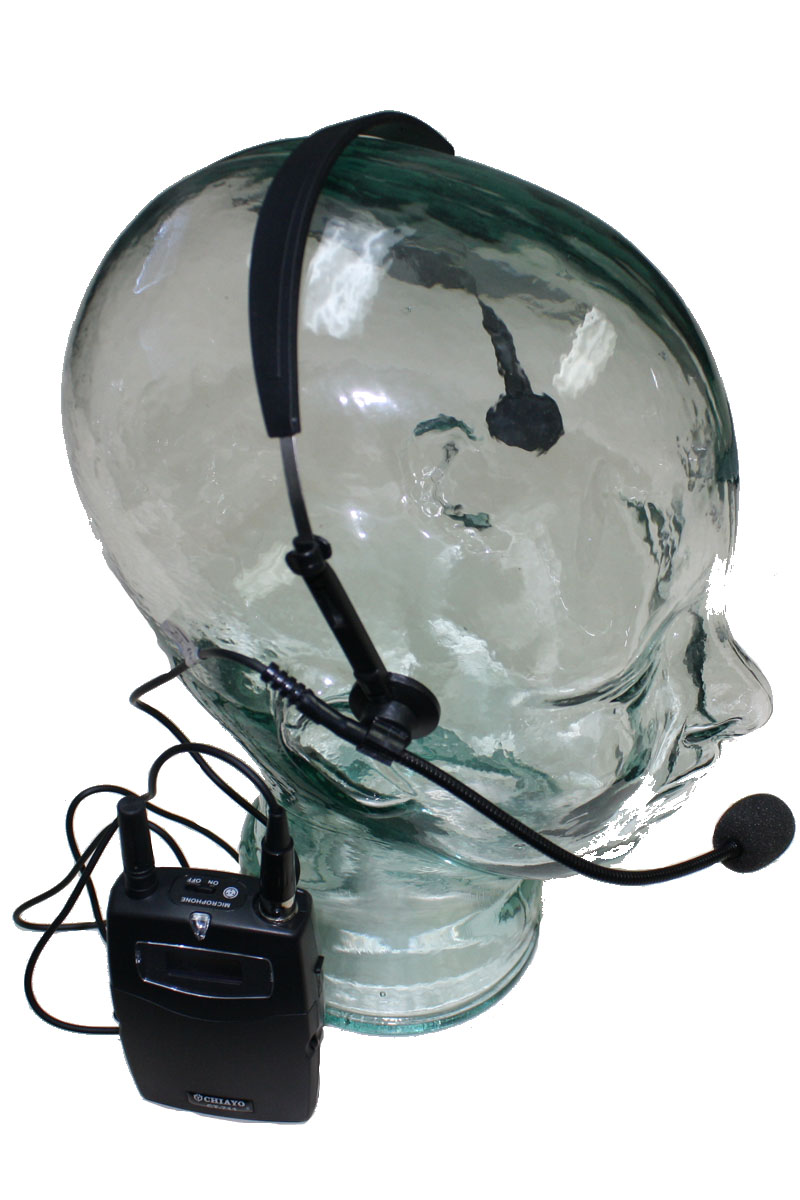

CT-711 Tour Guide Pocket Audio Transmitter (shown with MC72 Headset Mic). Compact and lightweight pocket transmitter for tour guide audio headset and translation audio system.
•MIC IN accepts Lavalier or headset microphone.
•LCD display-At-a-glance view of channel selection, battery status and function information.
•100 channels-100 preset channels for selection.
•Rechargeable-Uses 2 AA NiMH batteries and has charging port and contacts.
•Belt clip-Allows 360° adjustment for optimal position.
•Built-in charging circuit.
•13-15 hours operation (depending on battery capacity)
•Unique design of rear lock for battery compartment.
Language Assistant / Tour Guide Audio Headset System
Specifications Model CT-711
RF Generation and Control PLL Synthesizer
Frequency Range 600 - 694 MHz
Switching Bandwidth 25 MHz
Quantity of Channels 100
Channel Grid 250 KHz
RF Power Output 35mW**
Peak Deviation ±40 KHz
AF Frequency Response 80Hz - 15KHz ±3dB
Nominal Supply Voltage DC 3V
Current Consumption 120 mA
Battery AA x 2 (Alkaline or NiMh rechargeable)
Display LCD (Blue)
Function buttons POWER, UP/ DOWN, SET
Dimensions (mm) 133(L) x 65(W) x 35(H)
Weight (g) 97
