Handheld wireless microphone package. High quality UHF radio mic audio system, metal mic body, 100 selectable channels and a condenser cartridge make this a reliable and flexible multipurpose wireless microphone system suitable for vocals and general use for schools, business, hospitality, rental and entertainment venues.

Expect ~60 metre range in normal situations.

UHF 100-Frequency 2-Way Synchronising Diversity Receiver

  • 100 factory preset user-selectable UHF frequencies.
  • Advanced microprocessor control, excellent RF design with improved signal performance for interference free multi-channel operation.
  • Patented IrDA technology for 2-way sync between transmitter and receiver.
  • SCAN function automatically locates the next clean frequency.
  • More than 10-12 non interfering channels can be operated simultaneously within a selected 25MHz bandwidth.
  • Diversity design for high sensitivity, high selectivity, and high image/spurious rejections.
  • LCD display on the receiver shows selected frequency.
  • Antennas can be either rear or front mounted.
  • Anti-interference Pilotone control and RF noise squelch circuitries.
  • RF & AF LED indicators.
  • Balanced (XLR) x 1 / unbalanced (O6.3mm) x 1 audio outputs.
  • Half-rack metal chassis, mountable with optional mount kit
    (PA-WRK-1 for 1 unit, PA-WRK-2 for 2 units).
  • Matching transmitters: HH6100, BP6100.
  • Receiver provides power for Parallel Audio antenna systems to enhance reception range and signal stability.
  • Chassis: EIA standard 19” 1/2U
  • Frequency range: UHF 520-675MHz (3 available bands)
  • Bandwidth: Up to 25MHz
  • Receiving mode: Diversity
  • Peak deviation: ±40kHz
  • Channel sync: 2-way (receiver – transmitter)
  • Sensitivity: S/N > 80dBm at 10dBμV
  • S/N ratio: > 110dB (A)
  • T.H.D. : < 0.5% @ 1kHz
  • Frequency response: 50Hz – 18kHz
  • Receiving antenna: Rear Panel. Detachable.
  • Preset channels: 100
  • Oscillation mode: PLL synthesised, frequency stability ≤± 0.005% (-10 – +60C)
  • Squelch: Pilotone & Noise-cancelling dual-squelch circuit
  • Audio output adjustment: Gain control circuit for adjustment of output volume
  • Output connector: Balanced XLR and unbalanced 6.3Ø
  • Power supply: 12V DC, 1.0A
  • Power consumption: 12W
  • Dimensions (mm): 200 (W) x 44 (H) x 150 (D)
  • Weight (kg): 0.63

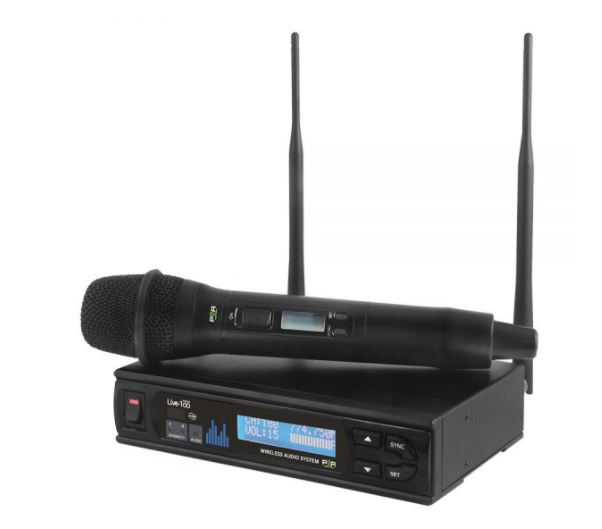

Wireless Radio Handheld Microphone and Receiver

  • Product Code: SDR-HH
  • Price: $499.00 (GST Excl.)
