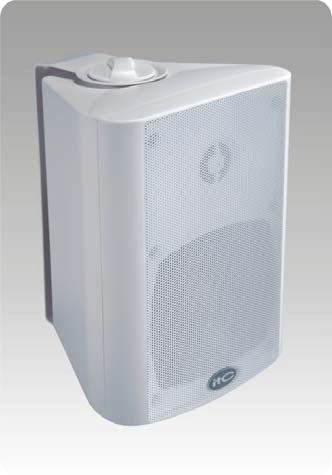

The T-774W is a compact wall mount speaker with built-in 70v/100v transformer. The built-in 4”+1.5” two way speaker driver provides smooth, quality sound with wide frequency response (130-18kHz)

The metal grille, ABS enclosure and stainless mounting bracket are white, and the supplied bracket provides easy and secure wall or ceiling mount installation.

An ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

  • Wall mount type loudspeaker 4” +1.5” two way speaker unit
  • Built-in 100v/70v transformer
  • Power taps 2.5w-5w-10w-20w @100V plus 8ohm
  • Metal grille, ABS enclosure and stainless mounting bracket

The T-774PW is a wall mount speaker with built-in 70v/100v transformer.

Model: T-774PW

  • Power Taps @100V: 2.5W, 5W, 10W, 20W
  • Transformer Impedance: 4KO/2KO/1KO/500O/245O
  • Input: 70V/100V/8O
  • SPL(1W/1M): 86dB Max. S
  • PL (Rated W/1M): 99dB
  • Frequency Response (-10dB): 130-18KHz
  • Finish Baffle: ABS, Black/White
  • Grille: Steel, Black/White
  • Speaker Driver: 4" x 1    1.5"x1
  • Dimensions: 222 x 160 x 160mm
  • Weight: 2.3kg
  • Mounting: With mounting bracket fixed by screw

15w 4"+1.5" Two-way wall mount speaker, 15w/100v

  • Product Code: T-774PW
  • U.O.M: ea
  • Price: $90.00 (GST Excl.)
