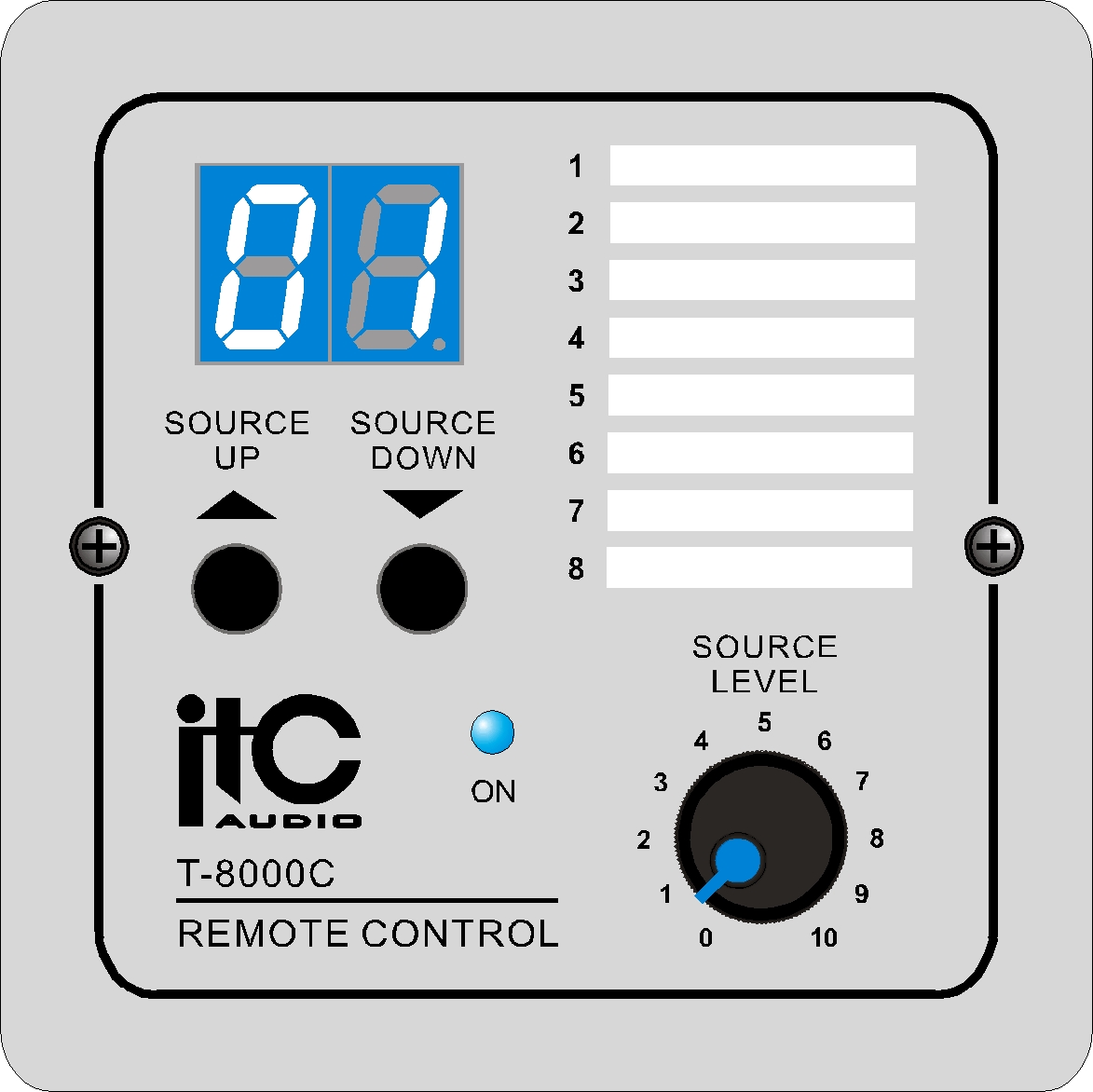

The T-8000C remote control module is connected with T-8000 through industry standard CAT 5 for each eight zone' s volume adjustment at a remote locations or zones.
The T-8000 provides eight RJ45 ports for the remote control modules which can be this model or our T-8000B with mic and line inputs.
CAT 5 wiring is not only cost-effective and easy to run, but also allows the integration of RS 485 communication, audio transmission and DC 24V power supply together on the one cable.
Other features
Zone LED indicator with up/down buttons.
Volume control is provided for overall output level control.
DC 24V power supply from controller, low power consumption 5W.
Simple control over local volume and audio source selection in remote zones.
Model T-8000C
Serial Communication Speed
4800bps
Serial Communication Distance
Maximum 1Km
Controls
Volume control
Power Supply
DC 24V
Power Consumption
5W
Weight
300g
Dimensions
86x86x33mm
Remote Control Panel for Audio Matrix (Volume control)
- Product Code: T-8000C
- U.O.M: ea
-
Price: $245.00 (GST Excl.)
