The T-8000B remote control with audio input module is connected with T-8000 through industry standard CAT 5 for each of the eight zone' s volume adjustment or remote line and microphone input at a remote location from the control center.
Each controller provides eight RJ45 ports for the remote control with audio input module.
The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integrates of RS 485 communication, audio transmission and DC 24V power supply together.
This module family also has simpler functional module: T-8000C.
Remote line by dual RCA and mic by XLR inputs with gain controls.
Zone LED indicator with up/down buttons.
Volume control is provided for overall output level control.
DC 24V power supply from controller, low power consumption 5W.

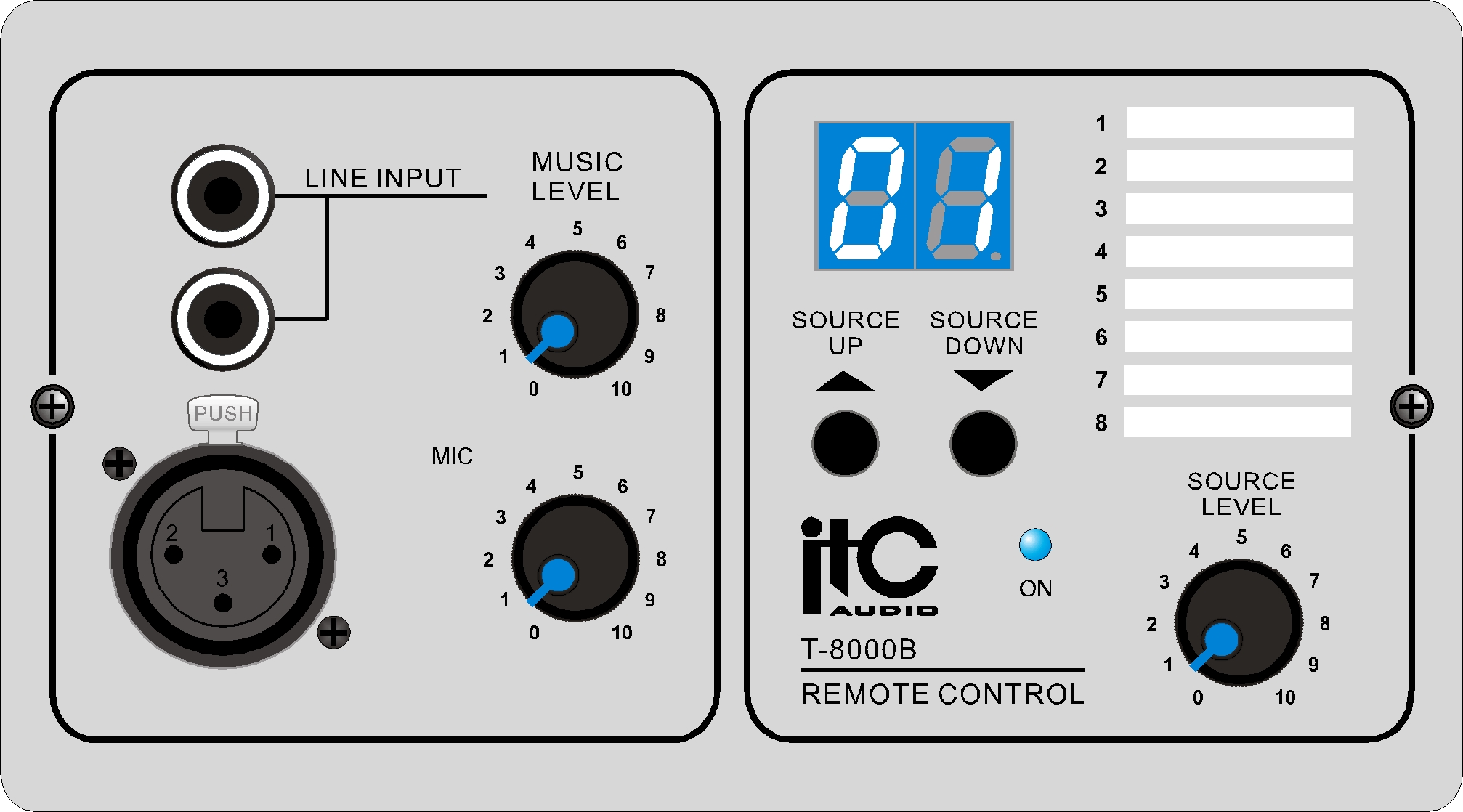

Model T-8000B remote volume control and Zone input panel allows tyou to connect a microphone or mixer/ipod etc into the local zone as well as selcting from the 8 audio sources connected into the main T-8000 master unit.
Serial Communication Speed
4800bps
Serial Communication Distance
Maximum 1Km
MIC Input Sensitivity: 5mV/600O
AUX Input Sensitivity: 350mV/10KO
Audio Output: 0dB/600O
Frequency Response
100Hz~8KHz (±1dB)
S/N Ratio
MIC Better than 65dB
Aux Better than 75dB
THD: Less than 0.1% at 1KHz
Controls: Volume control
Power Supply: DC 24V
Power Consumption: 5W
Weight: 500g
Dimensions: 86x146x33mm
Remote Control Panel for Audio Matrix - V/C+2inputs
- Product Code: T-8000B
- U.O.M: ea
-
Price: $279.00 (GST Excl.)
