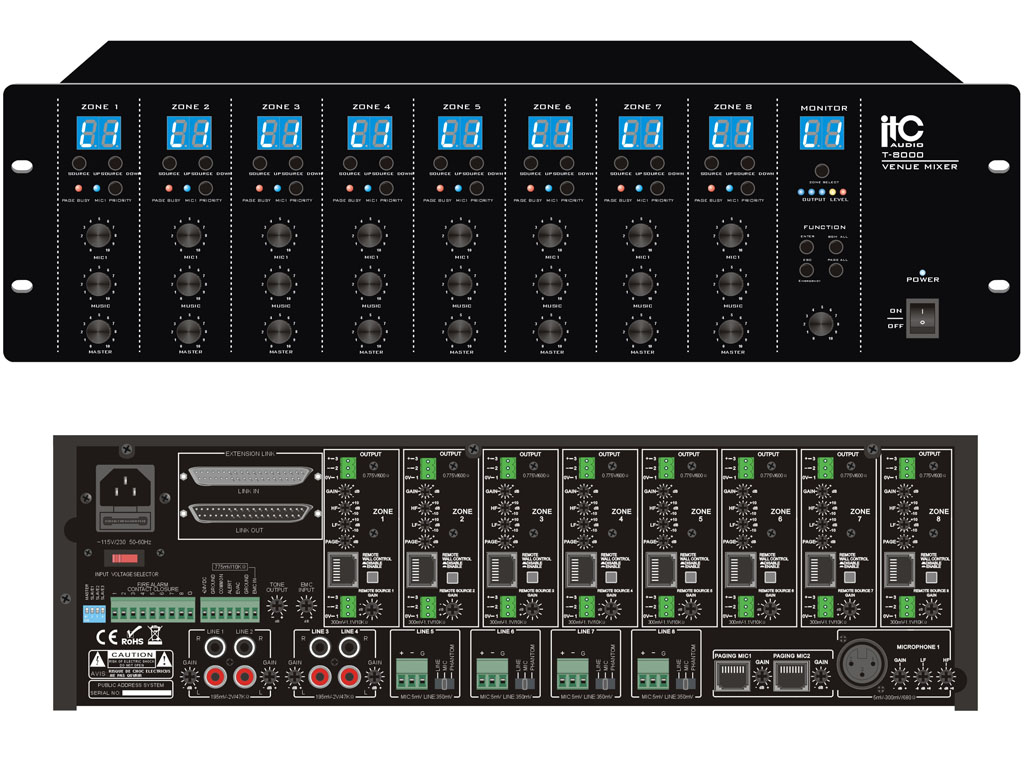

The 8 zone matrix & paging controller T-8000 provides multi-zone paging and multi-source audio selection. It offers a complete solution for multi-zone, multi-functional venues like entertainment venues, large hotels, sports and gym centers, shopping malls and airports, multi-room conference venues etc. Below is a summary of the features offered: The T-8000 offers direct connection of up to 8 music source inputs (4 RCA inputs and 4 line/mic inputs), 8 remote control panels, 2 remote paging consoles and one microphone input, and all of these inputs can be freely allocated into different 8 zone outputs simultaneously. One remote paging console and 2 different remote control panels are available when designing zone control, multi-zone paging and multi-source audio routing. The T-8000 master unit is expandable to 32 zones via a simple link cable to cascade 4 units together into 8x32 matrix system. Digital LCD display of program/local input selection and monitor selection, and LED indication for monitor output level, microphone priority and busy. Each input channel is provided with individual mic, music, master volume control, and each line and paging console input has gain control, a microphone input with gain, bass and treble control. A monitor volume control is provided as well. Each output channel has individual gain, bass and treble tone control, and a master gain control is also provided for each channel's remote wall control. 8 channel voice alarm contact closure overrides all music and paging systems during fire alarm state. Alert, evacuation and EMC three kinds of pre-recorded chimes are provided with tone control. All paging consoles and remote zone control panels connect via industry standard CAT 5 cable. 4 quick-keys give direct all channel BGM and paging access. AC 230~240V input and DC 24V operation. 5 levels of priority from high to low are: microphone 1, fire alarm input, remote paging console, remote control panel and background music.
Multi zone paging and public address system controller. The main unit (this item) can have up to 3 more T-8000 connected for simple control of up to 32 rooms or zones of sound. Our 8 Zone paging microphone and wall mount control panels can be combined to create a flexible, high quality multi zone sound system. It has inputs for fire alarms to override background music, 230V AC and 24V DC operation, and a host of other features that make this one of the smartest audio matrix zone control systems on the market. All backed up by Edwards Sound in Auckland and with a three year factory guarantee. Model T-8000 Line Input Line 1-8: 300mV/10KO Microphone 1 5mV/600O Remote Paging Station 500mV/10KO Output 0.775V/600O Frequency Response MIC 80Hz~18KHz +1/-3dB line: 0Hz~20KHz +1/-3dB Microphone S/N Ratio >65dB Line S/N Ratio >85dB Degree Of Separation >40dB Crosstalk >65dB THD <0.07% Indicator Power, Mic1, paging busy & monitor output Priority Mic1, voice alarm, local mic paging, remote zone paging, line 8, line 1-7 Communication Speed 4800bps Communication Port RJ45 Communication Protocol RS485 Power Consumption 20W Power Supply ~230V/50Hz & DC 24V DC Input DC 24V Dimensions 484×400×132mm Weight 6Kg
Audio Matrix, 8 x 8 Paging and Matrix System
- Product Code: T-8000
- U.O.M: ea
-
Price: $2,399.00 (GST Excl.)
